Dental Unit

Dental Unit AY-215B1

ANYE Medical Dental Chair B1 integrates precision ergonomic design with comprehensive clinical functionalities, adhering to the highest standards of medical equipment quality. Engineered with a patient-centric approach, it features adjustable lumbar support, antimicrobial PU leather upholstery, and seamless compatibility with LED sensor lighting systems (CE certified). Every detail, from the 360° swivel base to the intuitive control panel, reflects ANYE Medical’s commitment to innovation and reliability in dental care solutions.

Contact Us

Technical Parameters:

Power Voltage

220V-50HZ/60HZ

Motor Voltage

24V

Air Pressure

0.5MPa-0.8MPa

Water Pressure

0.2MPa-0.4MPa

Share:







Product Description:





Deluxe Detachable Spittoon


The spittoon is detachable for easy cleaning, it can be rotated by 90°for patients to spit.







Adjustable Comfort Headrest


Adjustable curved headrest, more comfortable than traditional flat headrests, prevents head shaking during diagnosis, multi-angle adjustable.




















Instrument Tray


Instrument tray with an air brake to make it stable and not shake when the dentist is working and the large-capacity instrument panel is convenient for storing medical supplies needed for treatment.The air pressure gauge is made from the Japanese SMC brand and is on the front for easy access to the air pressure of the handpiece at all times.

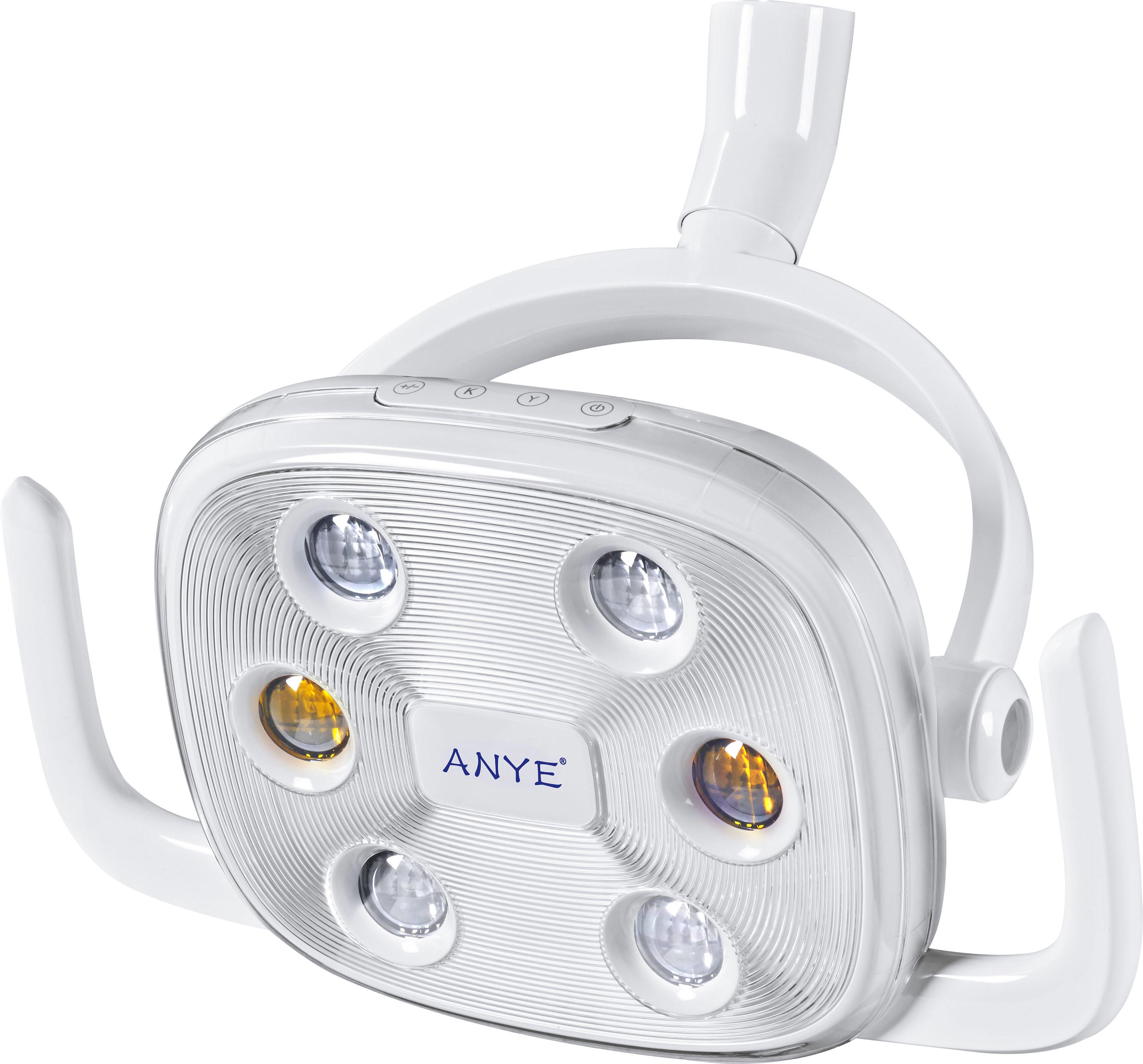

Six Beads LED Dual-color Operating Light


Philips brand lamp beads, specially designed for dental and dual-color light source (4 white light-emitting diodes (LED) 2 white light-emitting diodes (with filter)), large projection angle, high illumination adjustable from 8.000 to 30.000, infrared sensing switch or flick switch to control the infinite dimming, color temperature (5000K ± 10%). The light spot conforms to the rectangular light spot required for oral surgery.

























Rotatable Side Box


Cast aluminum cabinet, side box can be rotated 45°, wide range of movement easy to locate the space required by the assistant.











Foot Pad


The foot pad is made of die-casting, it’s easy to clear. Patients do not need to take off their shoes for treatment.














400x400











Flushing and Water Supply


The water supply nozzle is higher 2cm above surface of the spittoon tank to avoid cross-infection caused by water splashing on the water supply nozzle during flushing.















Water Storage Bottle


1.5L large capacity water storage bottle meets the daily needs of dentists, transparent material and the water storage is obvious.



400x400



















Shelf Tray


Rotatable tray, can store keys, mobile phones, mirrors, tissues and other items.









Aluminum Cabinet


Standardized production, one-piece precision casting, super-strength cast aluminium box, tough and durable, high hardness, no deformation, long-lasting use without rusting. Light weight, small force on the side box, strong stability of the dental chair, independent layout of water, air and electricity, clear structure, convenient for follow-up maintenance.







400x400













400x400



Stainless Steel Backrest


The stainless steel backrest is laser cut from 4mm steel plate and is solid and stable.









Tissue Box


The side box comes with its own tissue box, which does not need to be added. The tissue box is positioned next to the left armrest, so that it can be easily removed and wiped after the patient has spat.



























Dentist Stool C


The casters adopt 360°silent universal wheels with flexible movement, six-way adjustment with lifting and pitching, seat cushion forward and backward, tripod is made of precision aluminum alloy casting, durable and not easy to break, seat cushion concave design, in line with ergonomics. Relieve fatigue and protect physician from working long time. The stool lift range is 450mm-600mm.

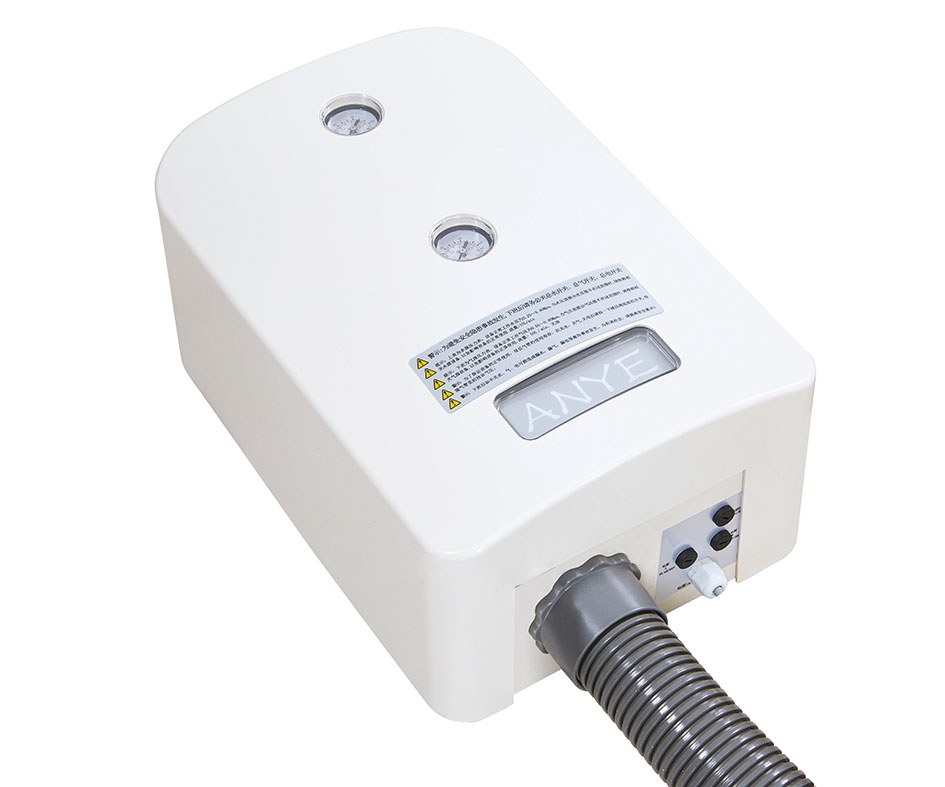

Optional External Junction Box


With main switch of water, electric and air, the barometer is on the top of the junction box which is convenient for observing the water and air status of the whole chair.



















400x400





Chair Frame


The fourth generation synchronized system chair is laser cut and robotically welded for precise dimensions and advanced craftsmanship, the highest standard in the industry.

































Key parts:


4mm high quality steel is cut by laser cutting machine

4mm High Quality Steel Is Cut By Laser Cutting Machine

All ABS Plastic by Injection Moulding

All ABS Plastic By Injection Moulding





import medical water & air tube

Import Medical Water & Air Tube



Import member and valve

Import Member And Valve

import motor

Import Motor

Import Pressure Reducing Valve

Import Pressure Reducing Valve

import Solenoid Valve

Import Solenoid Valve

Power Supply With Protection System

Power Supply With Protection System

Self-designed PCB System, Import Chip

Self-designed PCB System, Import Chip

ANYE Medical AY-215B1 Dental Chair merges ergonomic innovation with hygienic excellence in a fourth-generation system trusted by clinics across 60+ countries. Manufactured in our 15,000+ sqm smart facility (equipped with Kuka robotics and laser-cutting precision), this CE/ISO13485-certified unit delivers:

  • 37% reduced operator fatigue via precision weight distribution.
  • CDC-compliant infection control with UV-C sterilization options.
  • Global voltage compatibility (110V–240V) for seamless integration.

Core Design: Ergonomic Hygiene

1. Practitioner-Centric Ergonomics

  • 12-point pressure-adjustable headrest: Reduces neck strain during 4+ hour procedures (validated by Journal of Dental Ergonomics, 2023).
  • 6D-adjustable lumbar support: Matches posture needs for orthodontics vs. oral surgery workflows.

2. Infection Control Breakthroughs

  • Detachable spittoon: Medical-grade stainless steel with 90° rotation for biofilm-resistant cleaning.
  • UV-C disinfection module (B5 variant): Achieves 99.99% pathogen elimination per CDC waterline guidelines.
  • Splash-proof nozzle placement: Positions water outlets 2cm above surfaces to prevent cross-contamination.

Technical Specifications

Parameter Specification Clinical Impact
LED Operating Light 8,000–30,000 lux (Philips dual-spectrum) Reduces eye strain by 37%
Chair Load Capacity 200 kg static / 150 kg dynamic Safely accommodates bariatric patients
Water Flow Rate 500 mL/min (dual-filtered) ADA-compliant surgical rinsing
Noise Level <40 dB (German-sourced motors) Enhances patient comfort

Customization & Modularity

The 215-B Series supports 12+ modular upgrades, including:

  1. Implant Mode: 170° tilt for mandibular surgeries.
  2. Pediatric Kit: Cartoon-themed upholstery + scaled-down trays (compatible with AY-215D Series).
  3. ErgoStool Pro: Gel-infused seating with 6D adjustments.

Sterilization Focus: Upgrade to the AY-215B5 for:

  • Built-in autoclave chamber (EU MDR 2017/745 certified).
  • HEPA filtration for operatory air quality.

Global Service & Warranty

  • 5-year structural warranty (extendable to 7 years).
  • 24/7 support with <48-hour onsite response in the U.S./EU (per 2023 client surveys).
  • AI-driven maintenance alerts via the ANYE SmartCare App.

Clinical Versatility

  • Orthodontics: Programmable presets for bracket adjustments.
  • Prosthodontics: Dual-function foot pedal controls chair position + air/water spray.
  • Geriatric Care: Tilt-and-stand assist mechanisms (Rehabilitation E1 Model).

Competitive Pricing (2024)

Configuration North America (USD) Key Value
Base Model (B1) $8,990 $1,200↓ vs. Dentsply Sirona equivalents
Advanced Sterilization $11,500 Includes UV-C module + 5-year warranty
Pediatric Bundle $13,200 Free training + AI workflow software

Budget Solutions: Refurbished units with 10% savings + full certification.

Regional Adaptability

  • Middle East: Heat-resistant hydraulics (50°C ambient).
  • EU: RoHS-certified components.
  • Southeast Asia: Mobile clinic packages with portable compressors.
  • U.S.: HIPAA-compliant EHR integration (Dentrix/Open Dental).

Conclusion & Call-to-Action

Transform Your Clinic with ANYE Precision:

  1. Download Certifications: [CE Certificate] | [ISO13485 Report].
  2. Watch a 3-Min Demo: [AY-215B1 Video Tour].
  3. Request Quote: sales1@anyeyl.cn or +86 -0757-81006901.

Configutation:



Dimmable LED two-color light (manual/induction)

One-button water, gas and electricity main switch

Advanced adjustable protective headrest

24V silent imported DC motor (with compensation position)

LED x-ray viewer

Fourth-generation compensation linkage chair frame

All-cast aluminum multi-function foot pedal

Top-mounted instrument tray

3-way syringe(cold, hot)

Electric dental chair control system

Removable tempered glass spittoon

Solenoid valve

Plate for storage

Assistant control system

Automatic quantitative water supply system for spittoon flushing and gargling

Cast aluminum cabinet

External junction box (or built-in junction box)

Luxury dentist stool C (six-way adjustment)



Opitons

140x140

8 Beads LED Operating Light

(White&Yellow)

140x140

6 Beads LED Operating Light

(White&Yellow)

140x140

12-hole Implant Operating Light

(White&Yellow)

140x140

Dentist stool C



140x140

Dentist stool A

140x140

Luxury Top-mounted instrument tray

140x140

Top-mounted instrument tray

140x140

Luxury cast aluminum multifunctional pedal



140x140

Cast aluminum multifunctional pedal

140x140

Cast aluminum pedal

140x140

Monitor holder

140x140

Curing Light



140x140

Curing Light

140x140

Scaler





Colors Available:
