Kids Dental Unit

Kids Dental Unit AY-215D2

A full cartoon chair specially designed for children. The product is designed according to market demand to meet the clinical professional needs of dentist and provide a relaxing and enjoyable environment for children as the goal. It makes full use of ergonomic and high-strength precision technology to produced a high-end unit. The maximum weight capacity of the child chair is 135KGS and the height of the child is 1.7M.

Contact Us

Technical Parameters:

Power Voltage

220V-50HZ/60HZ

Motor Voltage

24V

Air Pressure

0.5MPa-0.8MPa

Water Pressure

0.2MPa-0.4MPa

Share:



Product Details:







Detachable Spittoon


The spitoon is made of new materials, drop-proof and can be put into sterilizer for disinfection. The peacock design gives children a relaxing and comfortable visual experience. It is detachable for easy cleaning, it can be rotated by 90°for patients to spit.





White and Yellow Light LED Operating Lamp


Philips LED light source. 4 white light emitting diodes (LED) , 4 white light emitting diodes (with filter) dedicated dental lamp, it has a large projection angle,high illumination adjustable from <8,000 to >30,000, infrared sensor switch or touch switch to control stepless dimming, color temperature selection 5000k±10%









Assistant Control System


The 7-buttons control panel allows the assistant to control the chair's common functions. Assist the dentists to improve the working efficiency.







Removable Instrument Tray


The removable instrument tray is equipped with 360° silent universal wheels to suit the dentist's needs at all angles.









Junction Box


Enclosed power design, according to European safety standards, moisture-proof, dustproof and prevent electromagnetic interference. It’s improve the stability and durability of the prower.

With main switch of water, electric and air, the barometer is on the top of the junction box which is convenient for observing the water and air status of the whole machine.







Control System with Memory Function


Electric dental chair control system with 18 control buttons, 9 memories, a button preset working position, which greatly improves the dentist's work efficiency.


















400x400

Multifunctional Foot Pedal


The pedals have self-lock function and equipped with control of rise and down, backrest forward and backward, blowing, flushing and water supply, operating lamp on/off and handpiece control. Multifunctional foot pedal frees up your hands and improves work efficiency.











Dentist Stool C


Dental stool C with 360°mute universal wheel which is flexible to move, six-way adjustment with lift and pitch.  It support the hips, relieve fatigue, and protect dentist from working for long periods of time.





400x400
400x400









Foot Pad


The foot pad is made of die-casting, it’s easy to clean. Patients do not need to take off their shoes for treatment.







Emergency Safety Switch


If the dental chair produces a malfunction or a medical emergency occurs, you can press the switch, at this time the whole machine water, air and electricity will stop working. It can be rotated and pulled up when the danger is removed.




























400x400





Water Transfer Switch


Water storage bottle is switched to supply water when the water transfer switch is pressed, and the water storage bottle gas switch is turned on at the same time.









Safety Belt


Effectively prevent children from shaking.





























400x400
400x400

Backrest Safety Lock


The backrest will automatically return and the seat will automatically rise when encounter resistance during the lying down process, it will be avoid obstacles, and provide more security.











Key parts:

4mm high quality steel is cut by laser cutting machine

4mm High Quality Steel Is Cut By Laser Cutting Machine

All ABS Plastic by Injection Moulding

All ABS Plastic By Injection Moulding



import medical water & air tube

Import Medical Water & Air Tube


Import member and valve

Import Member And Valve

import motor

Import Motor

Import Pressure Reducing Valve

Import Pressure Reducing Valve

import Solenoid Valve

Import Solenoid Valve

Self-designed PCB System, Import Chip

Self-designed PCB System, Import Chip

Configutation:



24V Noiseless Motor
Water Heater System
Strong Suction And Weak Suction
Water Purification System
Air brake Tray
Detached Spittoon
Imported Electromagnetism Valve
Spittoon Flush And Cup Filler
Removable Main Tray With 9 Memories
Multifunctional Foot Padal
X-Ray Viewer
Syringe(Cold/Hot Water)
Led Light 8 Bulbs (White/Yellow Color)
Dentist stool C

Opitons

140x140

8 Beads LED Operating Light

(White&Yellow)

140x140

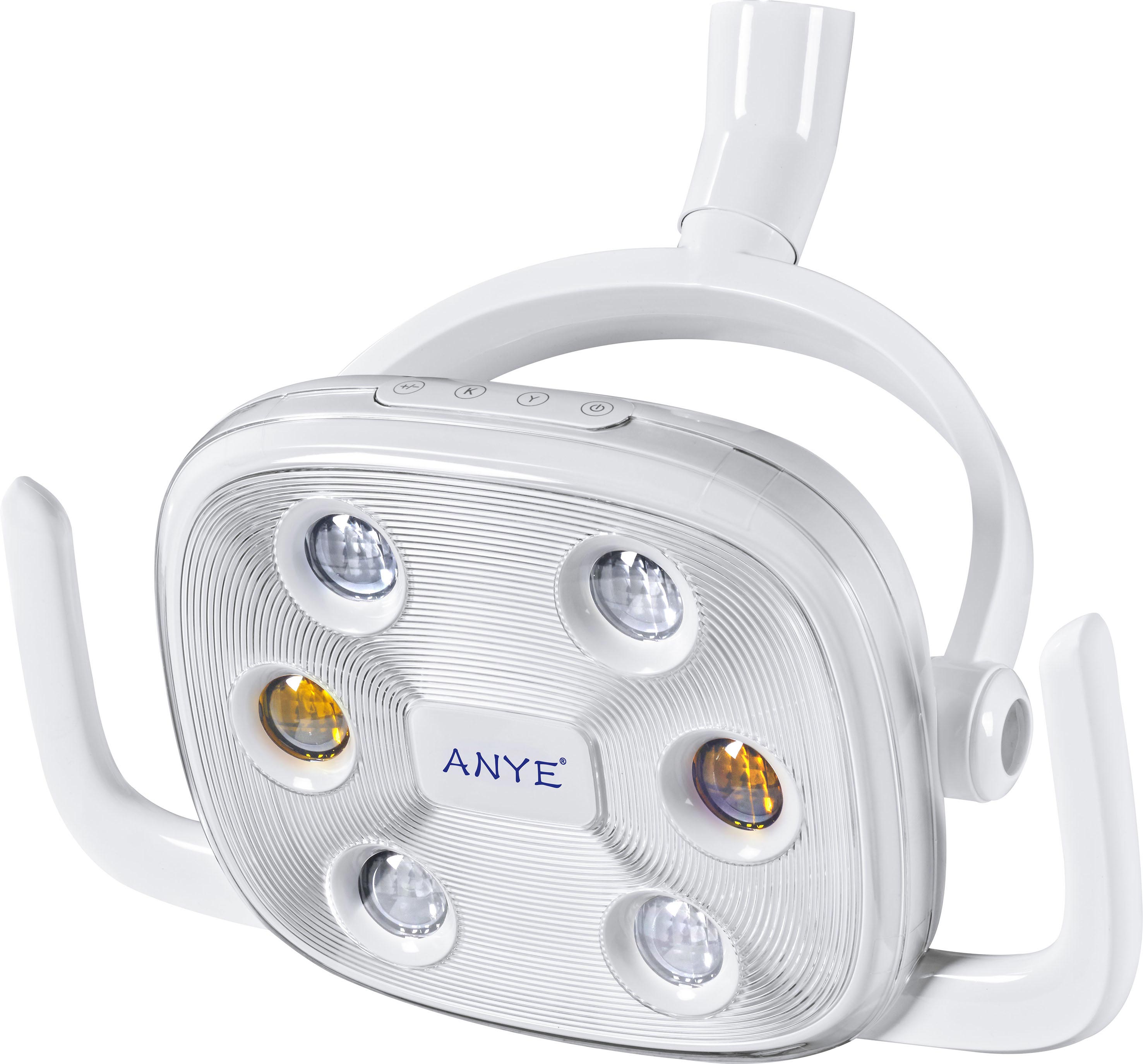

6 Beads LED Operating Light

(White&Yellow)

140x140

12-hole Implant Operating Light

(White&Yellow)

140x140

Dentist stool C



140x140

Dentist stool A

140x140

Luxury Top-mounted instrument tray

140x140

Top-mounted instrument tray

140x140

Luxury cast aluminum multifunctional pedal



140x140

Cast aluminum multifunctional pedal

140x140

Cast aluminum pedal

140x140

Monitor holder

140x140

Curing Light



140x140

Curing Light

140x140

Scaler





Colors Available:
